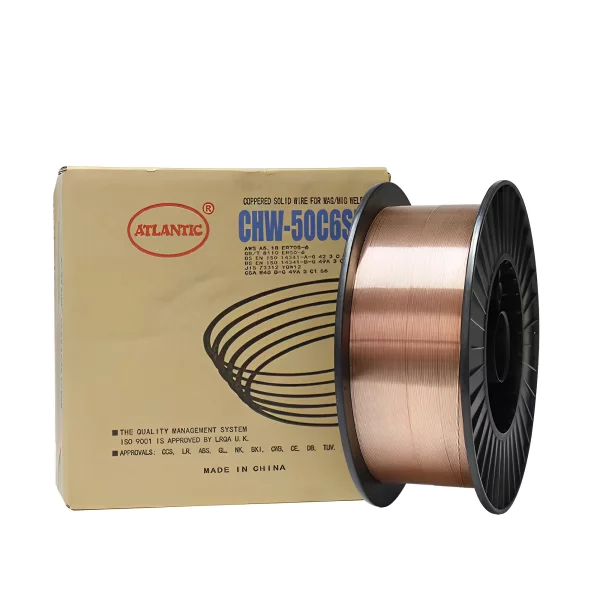

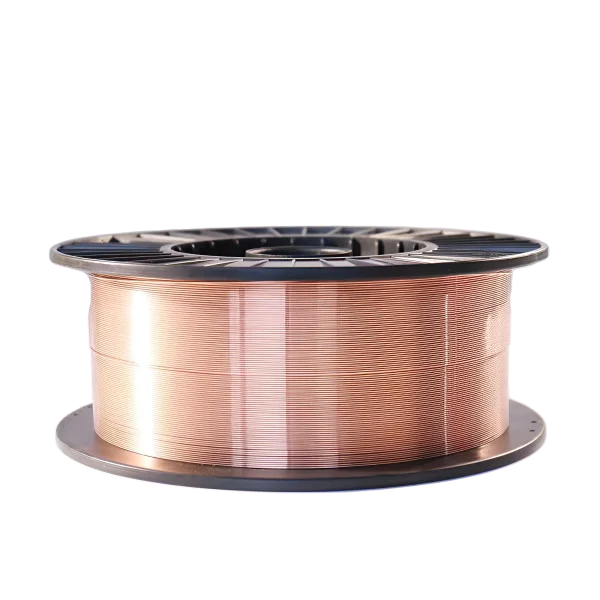

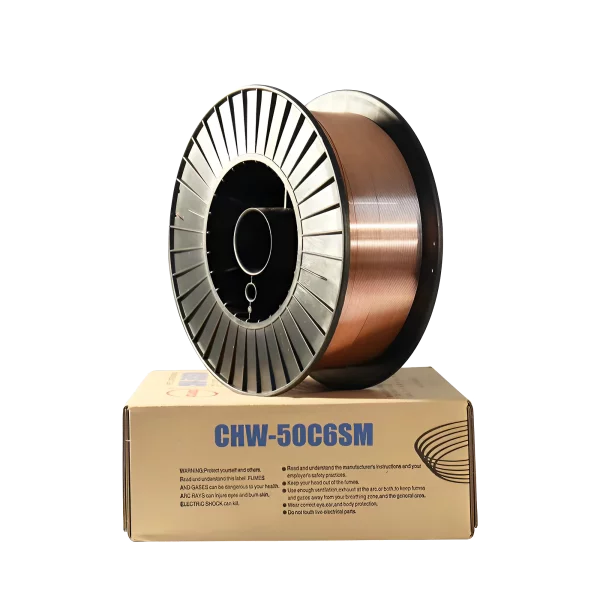

CHW-50C6SM

CHW-50C6SM has very good welding performance and the weld metal shows lower temperature impact toughness. It is mainly for butt and fillet welding structures made by shipping steels and low alloy steels, such as ships, containers, vehicles, engineering & construction machinery and so on.

More Information

Welding Position: F, H, HF, OH, V

Type of Current: DCEP

Chemical Composition of the Wire (%)



-
Standard
Typical
C
0.06-0.15
0.078
Mn
1.40-1.85
1.53
Si
0.80-1.15
0.85
S
≤0.035
0.010
P
≤0.025
0.011
Ni
≤0.15
0.029
Cr
≤0.15
0.029
Mo
≤0.15
0.008
V
≤0.03
0.010
Cu
≤0.50
0.12



Mechanical Properties of Deposited Metal (AW)



-
Standard
Typical
Yield Strength
ReH (MPa)
≥420
430
Tensile Strength
Rm (MPa)
≥500
550
Elongation
A4 (%)
≥22
30
Impact Value (J)
-20 •  •
≥47
102
-30 •  •
≥27
89
-40 •  •
-
70
Shield Gas
CO2
Purity ≥99.98%



Recommended Current (DC+)



Diameter (mm)
Current (A)
0.6
40-120
0.8
40-140
0.9
40-180
1.0
50-220
1.2
80-350
1.6
120-550



Approvals



Institute
Grade
Institute
Grade
CCS
3YSM
BKI
3YSM
LR
3YS, H15
3YM, H15
KR
3YSMG(C1)
ABS
3SA, 3YSA
CWB
B-G 49A 3 C
G6(ER49S-6)
GL
3YS
DB
G3Si1 DIN
EN440
BV
SA3YM
CE
G3SI1 DIN
EN440
DNV
• •YMS
TUV
EN440-G42 4 MG3Si1
NK
KSW53G(C),
KAW53MG(C)
TUV
EN440-G42 4 MG3Si1



Notice:

  1. To avoid rust the wire must be kept in dry condition and keep the package in good condition also before welding.
  2. To avoid welding defect the shield gas should be pure particularly no moisture in it.
  3. The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture and so on.
  4. The welding conditions mentioned above for reference only and it is better to do a welding procedure qualification according to project before put it into formal welding.
